Description
SPECS
Style: Baja Designs OnX6+ 20" Wide Driving LED Light Bar
Off-Road Light Bar Type: Straight
Beam Type: Wide Driving
Weight: 7.85 lbs

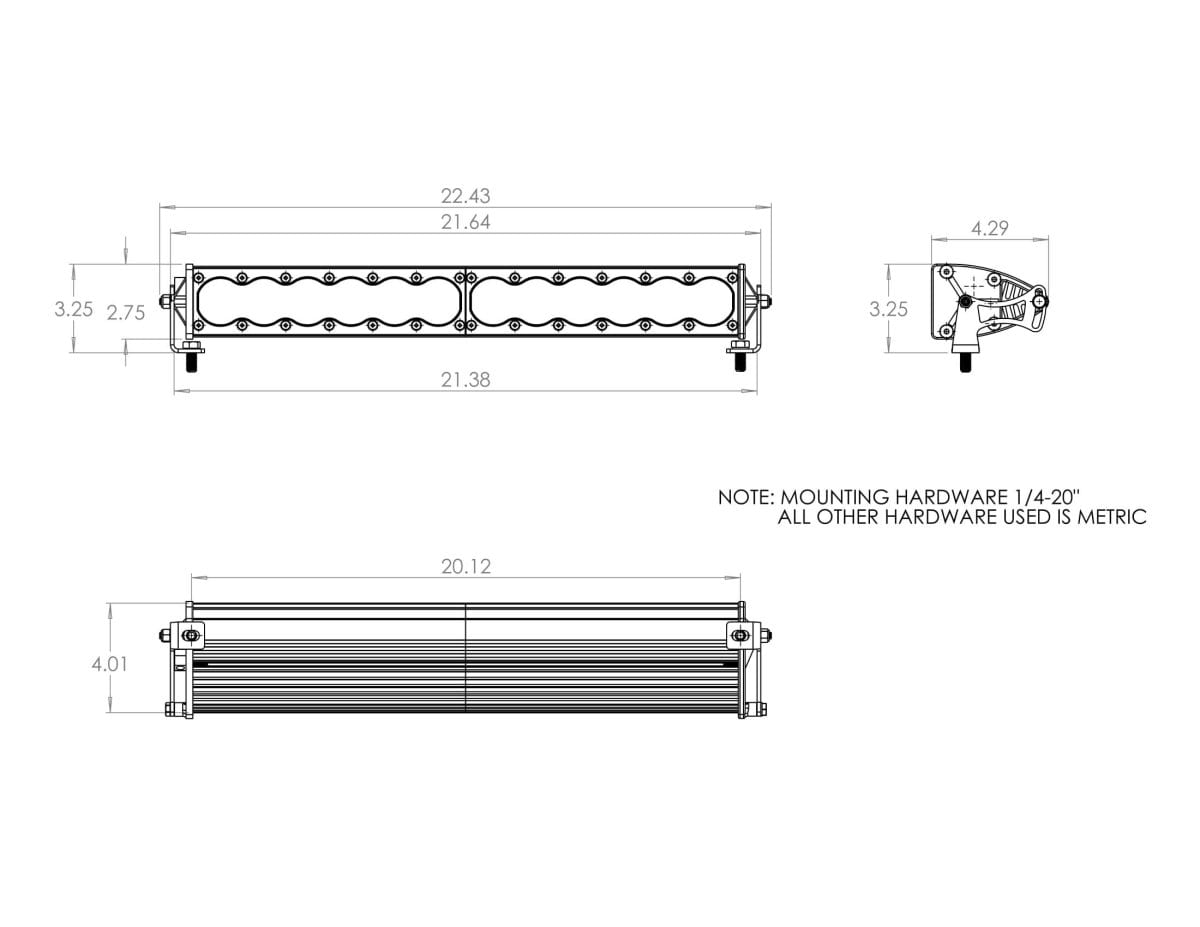

Dimensions (L x W x H): 20 x 4.29 x 2.69 in
Lumens: (High) 24,920 (Low) 18,460 Utilizing 12 Cree LEDs
Wattage/Amps: (High) 216W / 16.6A (Low) 160W / 12.0A
LED Life Expectancy: 49,930 Hours
Front Lens: Hard Coated Polycarbonate
Housing: Aircraft Grade Aluminum with Mil-Spec Hard Anodize
Bezel: Billet Machined Aluminum
Hardware & Bracket Material: Stainless Steel

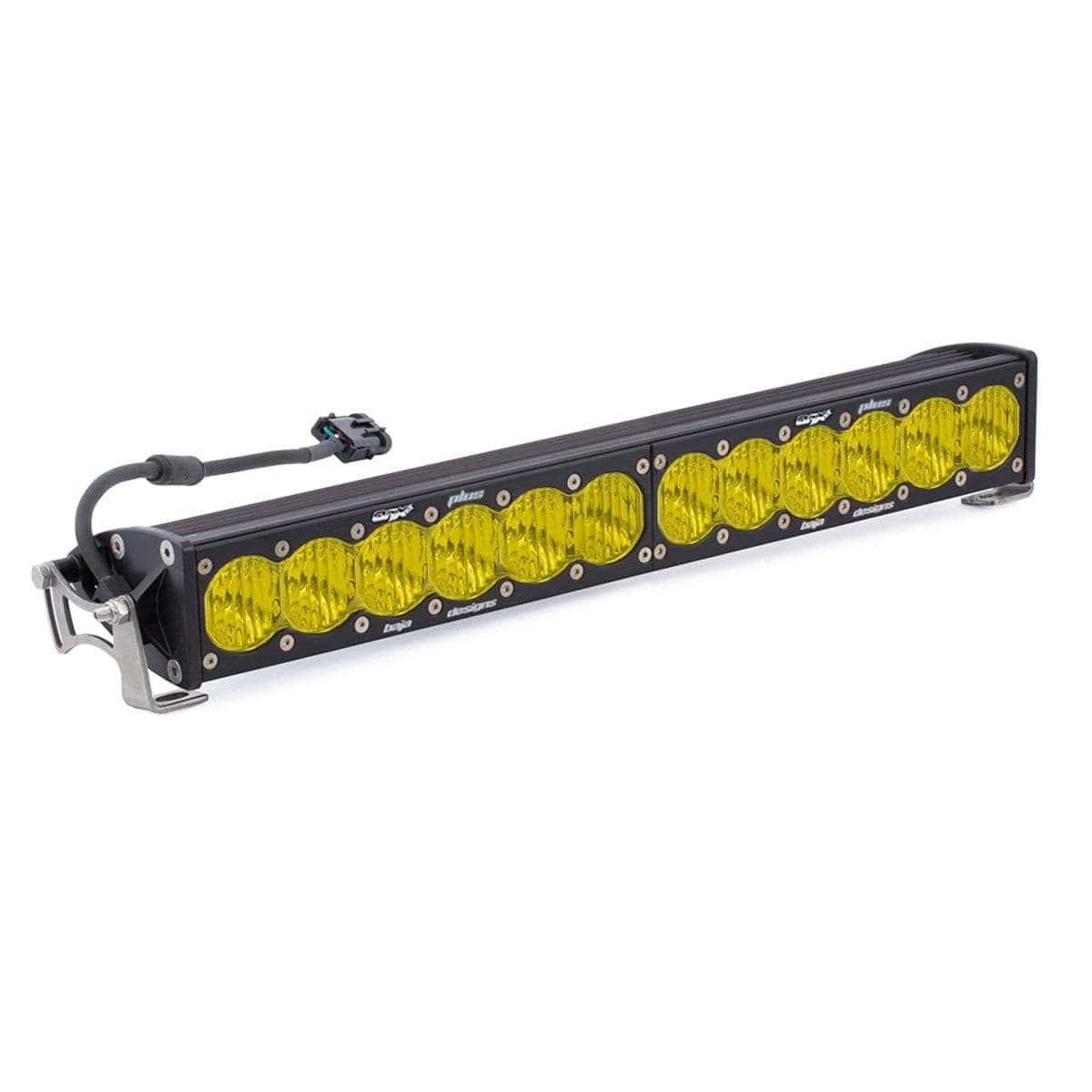

Baja Designs 452014 OnX6+ 20" Amber LED Light Bar
Features:
- At an impressive 24,920 lumens, the brightest just got up to 69% brighter than our previous generation.
- The OnX6+ LED light bar also integrates Baja Designs trademarked High-Speed Spot™ reflector, the same one used by our Team Enlightened racers, to give you the guaranteed furthest projecting LED Light Bar on the planet.
- In addition, the OnX6+ LED light bar adopts industry standard sizing and is now compatible with aftermarket mounting systems.
- Built-In Overvoltage Protection
- Exceeds MIL-STD810G (Mil-Spec Testing)
- IP69K (Waterproof up to 9ft & Pressure Washable)
- IK10 Compliant (Mechanical Impact Testing)
Ships with:
- OnX6+ 20” LED Light Bar
- Mounting Brackets
- Hi-Low Dongle
- Please note that this light does NOT include a harness and the applicable harness to this light is 640119
Patterns:
- Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Wide Driving (42°) and the spot (6°) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)
- Wide Driving: BD was the first to develop a pattern specifically for cornering, dust and/or fog conditions. The Wide Driving pattern offers a 42° flattened horizontal beam for the ultimate in comfort lighting. (Lighting Zones 1 & 2) (Also available in amber)
- High Speed Spot: A longer and narrower 6° beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 & 5)
- Racer Edition Spot: A 4° beam focus for illumination WAY down the trail or road. The Racer Edition Spot is for speeds of 110+ MPH or if you need to see a mile+ away. This is the latest version for our Team Enlightened racers and is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 5+)
