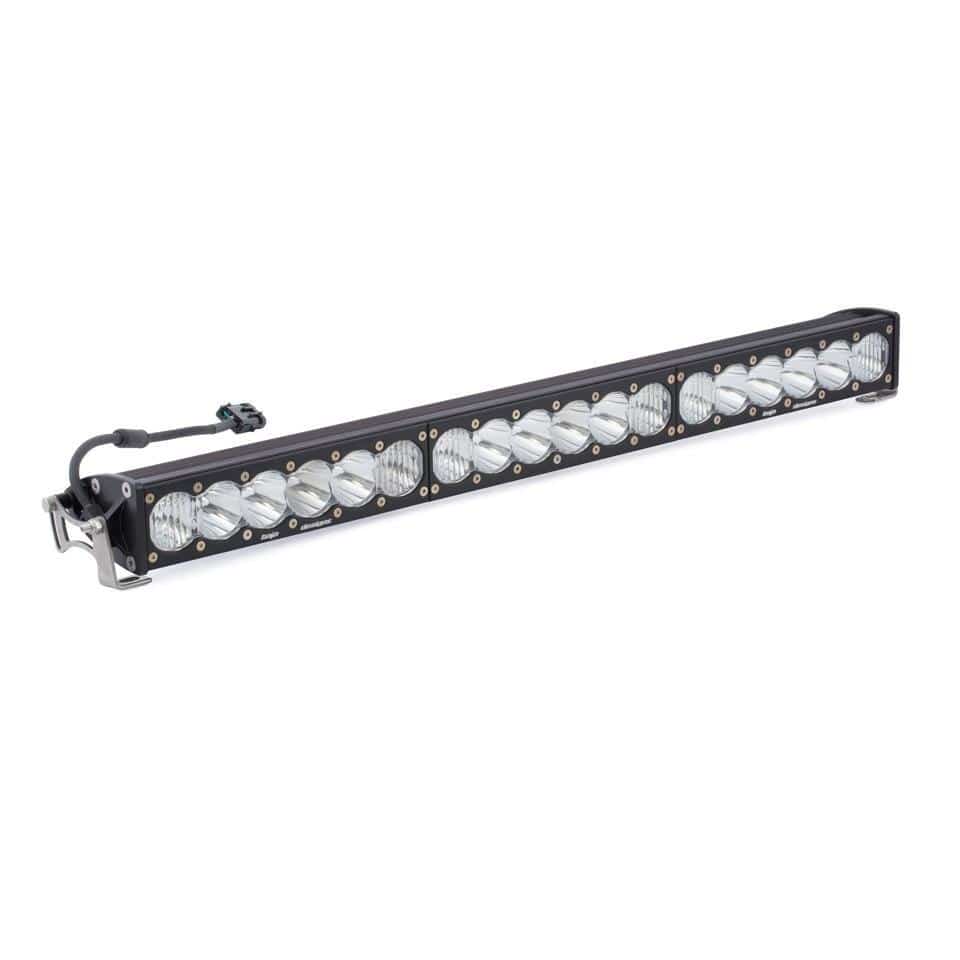

Baja Designs 453003 OnX6+ 30inch White Driving/Combo LED Light Bar
SKU
453003
FITMENT CONFIRMED
CONFIRMED FIT FOR
NOT A MATCH
WILL NOT FIT
Not vehicle specific
Universal fit
CONFIRM IT FITS YOUR TRUCK
Regular price
$1,149.95
Unit price
30-day hassle-free returns
PAY OVER TIME WITH BREAD
0% APR available. Prequalifying will not affect your credit.
Real truck enthusiasts. Not a call center.
Free LTL Freight Shipping
Free freight shipping. Carrier schedules delivery at a time that works for you.
$1,149.95
Product details
Full specifications
- Style
- Baja Designs OnX6+ 30" Driving/Combo LED Light Bar
- Off-Road Light Bar Type
- Straight
- Beam Type
- Spot/Drive
- Weight
- 11.45 lbs
- Dimensions (L x W x H)
- 30" x 4.29" x 2.69"
- Lumens
- (High) 31,910 (Low) 25,450 Utilizing 18 Cree LEDs
- Wattage/Amps
- (High) 281W / 21.7A (Low) 225W / 17.1A
- LED Life Expectancy
- 49,930 Hours
- Front Lens
- Hard Coated Polycarbonate
- Housing
- Aircraft Grade Aluminum with Mil-Spec Hard Anodize
- Bezel
- Billet Machined Aluminum
- Hardware & Bracket Material
- Stainless Steel
- Features
- At an impressive 31,910 lumens, the brightest just got up to 69% brighter. The OnX6+ LED light bar also integrates Baja Designs’ trademarked High-Speed Spot™ reflector, the same one used by our Team Enlightened racers, to give you the guaranteed furthest projecting LED Light Bar on the planet. In addition, the OnX6+ LED light bar adopts industry standard sizing and is now compatible with aftermarket mounting systems. Elimination Of Flickering at Low Voltage Added Protection to Vehicle Wiring and Systems Protection from Dangerous Current Spikes Built-In Overvoltage Protection Exceeds MIL-STD810G (Mil-Spec Testing) IP69K (Waterproof up to 9ft & Pressure Washable) IK10 Compliant (Mechanical Impact Testing) Ships with: OnX6+ 30” LED Light Bar Mounting Brackets Hi-Low Dongle Please note that this light does NOT include a harness and the applicable harness to this light is 640119 Patterns: Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Wide Driving (42°) and the spot (6°) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3) Wide Driving: BD was the first to develop a pattern specifically for cornering, dust, and/or fog conditions. The Wide Driving pattern offers a 42° flattened horizontal beam for the ultimate in comfort lighting. (Lighting Zones 1 & 2) (Also available in amber) High-Speed Spot: A longer and narrower 6° beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 & 5) Racer Edition Spot: A 4° beam focus for illumination WAY down the trail or road. The Racer Edition Spot is for speeds of 110+ MPH or if you need to see a mile+ away. This is the latest version for our Team Enlightened racers and is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights.
Style: Baja Designs OnX6+ 30" Driving/Combo LED Light Bar
Off-Road Light Bar Type: Straight
Beam Type: Spot/Drive
Weight: 11.45 lbs
Dimensions (L x W x H): 30" x 4.29" x 2.69"
Lumens: (High) 31,910 (Low) 25,450 Utilizing 18 Cree LEDs
Wattage/Amps: (High) 281W / 21.7A (Low) 225W / 17.1A
LED Life Expectancy: 49,930 Hours
Front Lens: Hard Coated Polycarbonate
Housing: Aircraft Grade Aluminum with Mil-Spec Hard Anodize
Bezel: Billet Machined Aluminum
Hardware & Bracket Material: Stainless Steel
Features:
- At an impressive 31,910 lumens, the brightest just got up to 69% brighter. The OnX6+ LED light bar also integrates Baja Designs’ trademarked High-Speed Spot™ reflector, the same one used by our Team Enlightened racers, to give you the guaranteed furthest projecting LED Light Bar on the planet.
- In addition, the OnX6+ LED light bar adopts industry standard sizing and is now compatible with aftermarket mounting systems.
- Elimination Of Flickering at Low Voltage
- Added Protection to Vehicle Wiring and Systems
- Protection from Dangerous Current Spikes
- Built-In Overvoltage Protection
- Exceeds MIL-STD810G (Mil-Spec Testing)
- IP69K (Waterproof up to 9ft & Pressure Washable)
- IK10 Compliant (Mechanical Impact Testing)
Ships with:
- OnX6+ 30” LED Light Bar
- Mounting Brackets
- Hi-Low Dongle
- Please note that this light does NOT include a harness and the applicable harness to this light is 640119
Patterns:
- Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Wide Driving (42°) and the spot (6°) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)
- Wide Driving: BD was the first to develop a pattern specifically for cornering, dust, and/or fog conditions. The Wide Driving pattern offers a 42° flattened horizontal beam for the ultimate in comfort lighting. (Lighting Zones 1 & 2) (Also available in amber)
- High-Speed Spot: A longer and narrower 6° beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 & 5)
- Racer Edition Spot: A 4° beam focus for illumination WAY down the trail or road. The Racer Edition Spot is for speeds of 110+ MPH or if you need to see a mile+ away. This is the latest version for our Team Enlightened racers and is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights.
Style: Baja Designs OnX6+ 30" Driving/Combo LED Light Bar
Off-Road Light Bar Type: Straight
Beam Type: Spot/Drive
Weight: 11.45 lbs
Dimensions (L x W x H): 30" x 4.29" x 2.69"
Lumens: (High) 31,910 (Low) 25,450 Utilizing 18 Cree LEDs
Wattage/Amps: (High) 281W / 21.7A (Low) 225W / 17.1A
LED Life Expectancy: 49,930 Hours
Front Lens: Hard Coated Polycarbonate
Housing: Aircraft Grade Aluminum with Mil-Spec Hard Anodize
Bezel: Billet Machined Aluminum
Hardware & Bracket Material: Stainless Steel
Features:
- At an impressive 31,910 lumens, the brightest just got up to 69% brighter. The OnX6+ LED light bar also integrates Baja Designs’ trademarked High-Speed Spot™ reflector, the same one used by our Team Enlightened racers, to give you the guaranteed furthest projecting LED Light Bar on the planet.
- In addition, the OnX6+ LED light bar adopts industry standard sizing and is now compatible with aftermarket mounting systems.
- Elimination Of Flickering at Low Voltage
- Added Protection to Vehicle Wiring and Systems
- Protection from Dangerous Current Spikes
- Built-In Overvoltage Protection
- Exceeds MIL-STD810G (Mil-Spec Testing)
- IP69K (Waterproof up to 9ft & Pressure Washable)
- IK10 Compliant (Mechanical Impact Testing)
Ships with:
- OnX6+ 30” LED Light Bar
- Mounting Brackets
- Hi-Low Dongle
- Please note that this light does NOT include a harness and the applicable harness to this light is 640119
Patterns:
- Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Wide Driving (42°) and the spot (6°) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)
- Wide Driving: BD was the first to develop a pattern specifically for cornering, dust, and/or fog conditions. The Wide Driving pattern offers a 42° flattened horizontal beam for the ultimate in comfort lighting. (Lighting Zones 1 & 2) (Also available in amber)
- High-Speed Spot: A longer and narrower 6° beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 & 5)
- Racer Edition Spot: A 4° beam focus for illumination WAY down the trail or road. The Racer Edition Spot is for speeds of 110+ MPH or if you need to see a mile+ away. This is the latest version for our Team Enlightened racers and is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights.
