Description
Brand: Warn
Part Number: 89305
Fitment Notes: This product requires a compatible bumper or mounting plate to be properly mounted to your vehicle.
Type: Winch
Style: Warn Jeep, Truck & SUV Winches

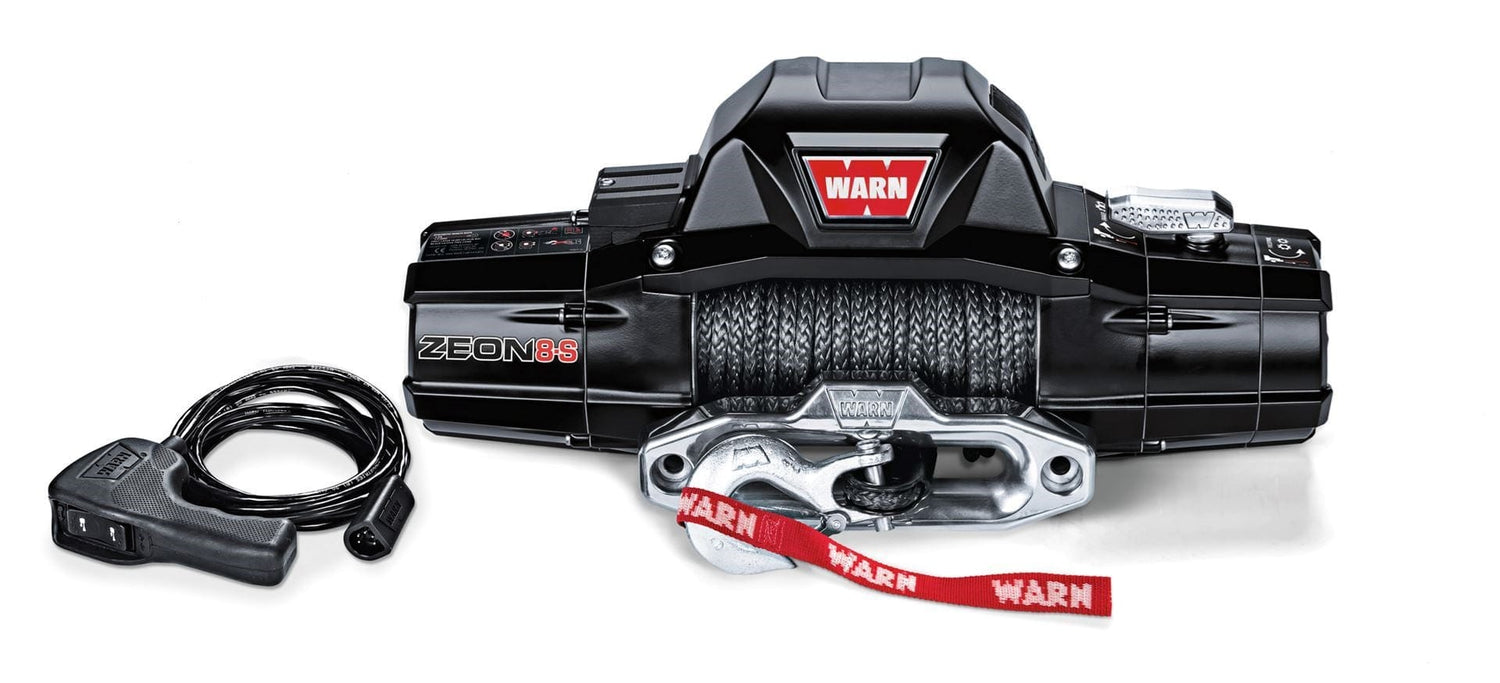

Warn ZEON 8-S Winch 89305
Features:
- Includes 100 Foot Of 3/8 Inch Warn Spydura Synthetic Rope, Which Includes A Temperature-Resistant Sleeve On The First Layer, A Ballistic Nylon Sliding Sleeve And A Polished Aluminum Hawse Fairlead
- Convertible Control Pack Can Be Attached To The Winch Or Remotely Mounted, Allowing For Various Winch Mounting Options And Looks
- Satin-Black Powder-Coated Finish With Stainless Steel Fasteners And Clutch Lever Looks Great And Inhibits Corrosion. Improved Winch Sealing To Keep The Elements Out
- Large Diameter Winch Drum Reduces Rope Wear, Is Light Weight, And Has An Integrated Rope Anchor For Easy Rope Installation
- Limited Lifetime Warranty for Mechanical Components. Limited Seven (7) year warranty for Electrical Components.
Details:
- Winch Rating: 8000 Pound
- Recommended Use: Vehicle Recovery
- Operation Type: Electric
- Mount Type: Fixed Mount
- Voltage: 12 Volt
- Free Spooling: Yes
- Line Length (FT): 100 Feet
- Line Material: Synthetic

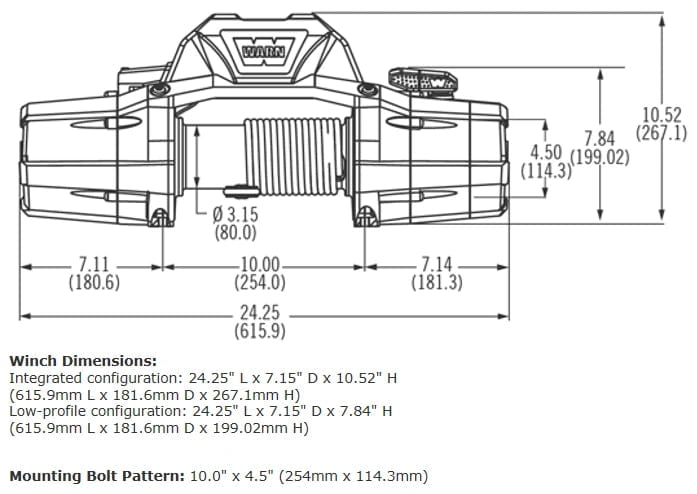

- Mounting Pattern Size: 10 Inch Length X 4-1/2 Inch Width
- Brake Type: Automatic Cone

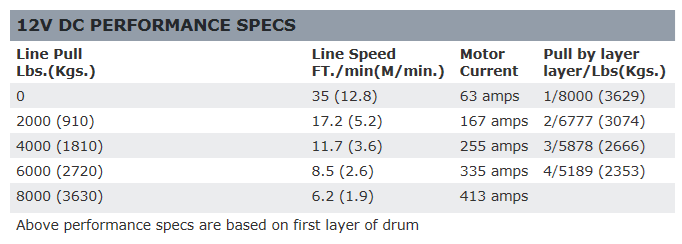

- Max Amp Draw: 413 Amp Draw At 8000 Pound
- Gear Reduction Ratio: 162:1
- Includes Mounting Hardware: No
- Thermal Shutoff: No
- Color: Black
- Fairlead Type: Hawse
- Remote Type: Wired
- Line Speed At Max Pull: 6.2 Feet Per Minute At 8000 Pound
- Electrical Control Type: Contactors
- Motor Type: Series Wound
- Drive Gear Type: Planetary
- Line Diameter (IN): 3/8 Inch
- Mounting Hole Quantity: 4
- Drum Material: Aluminum
- Estimated Install Time (Hours): 2
