Description
Brand: Warn
Part Number: 101145
Fitment Notes: This product requires a compatible bumper or mounting plate to be properly mounted to your vehicle.
Type: Winch

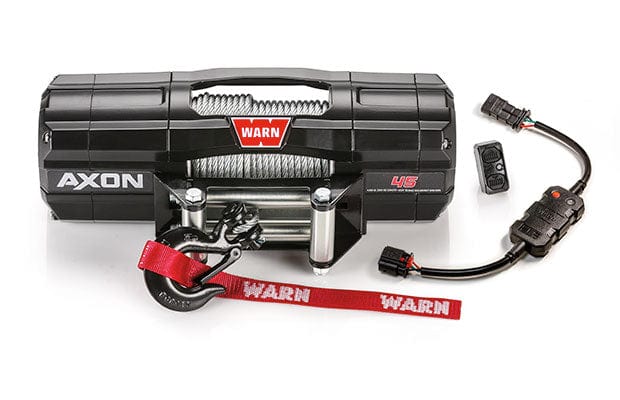

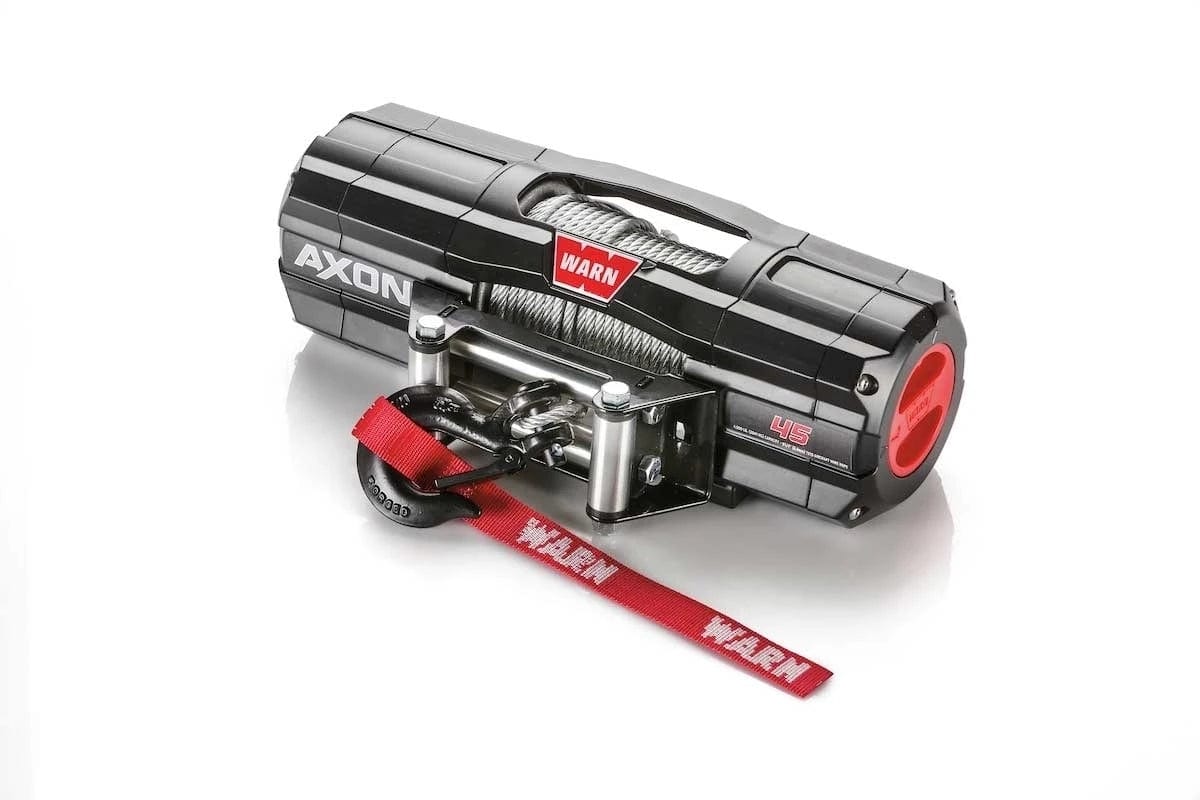

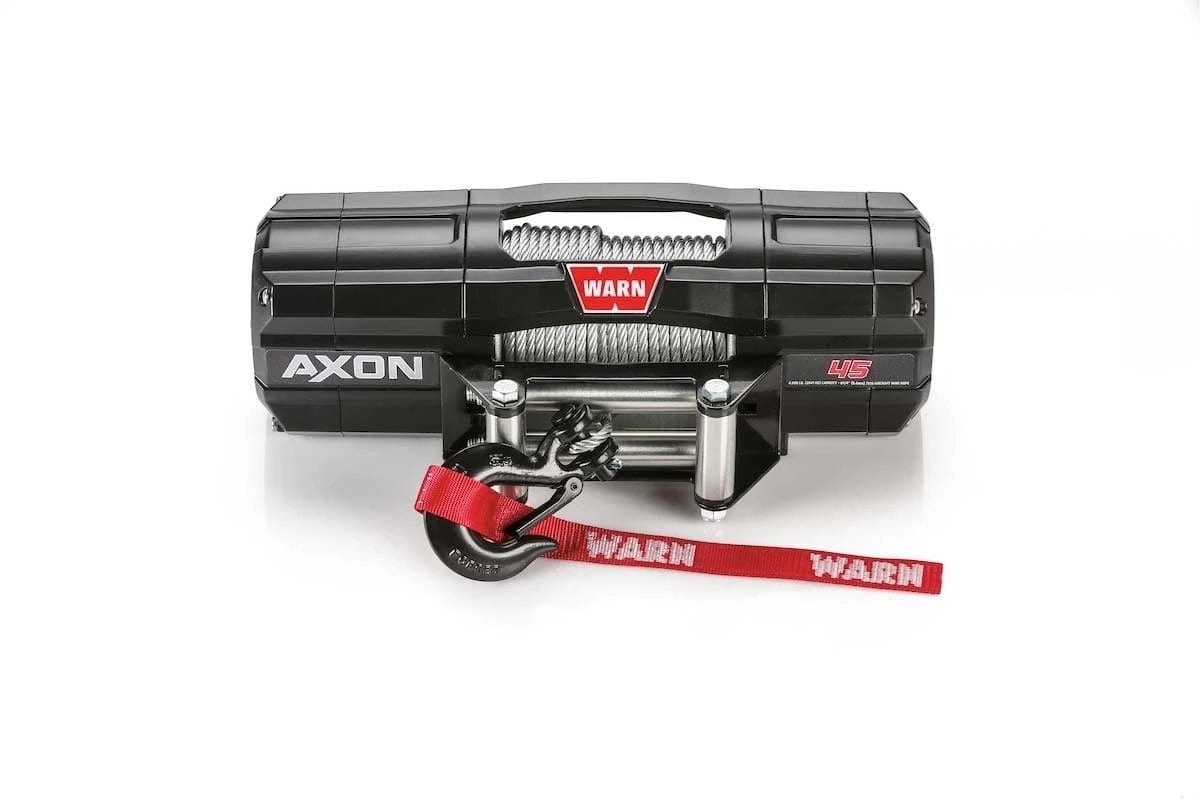

WARN AXON 101145
Features:
- Powerful 4,500 lb. pulling capacity is perfect for UTV/Side x Sides
- Revolutionary Motactor™ combines motor and contactor for easy installation, best performance
- Digital control offers never-before seen levels of performance and user feedback including load and
temperature info - Smooth, reliable all-metal three-stage planetary gear train
- Satin black powder-coated finish and stainless steel fasteners for corrosion resistance
- New clutch design based on legendary WARN 4WD hub lock know-how
- Durable all-metal construction and one-piece tie plate (vs. tie bars) for increased structural rigidity
- IP68 waterproofing keeps water and the elements out
- Load-holding brake for great control
- Rockerbar digital control switch, and HUB Wireless Receiver
- Limited lifetime warranty (mechanical), 3 year warranty (electrical)
Details:
- Winch Rating: 4500 Pound
- Recommended Use: ATV/ UTV
- Operation Type: Electric
- Mount Type: Fixed Mount
- Voltage: 12 Volt
- Free Spooling: No
- Line Length (FT): 50 Feet
- Line Material: Steel
- Remote Type: Wireless
- Universality: Fully Universal
- Brake Type: Automatic Cone
- Max Amp Draw: 204 Amp Draw At 3500 Pound
- Includes Mounting Hardware: No
- Thermal Shutoff: No
- Color: Black
- Fairlead Type: Roller

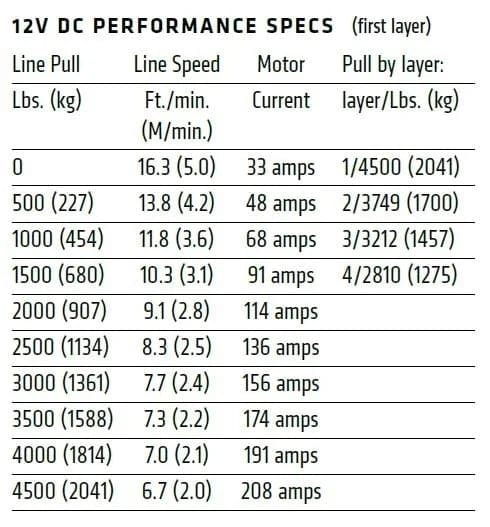

- Line Speed At Max Pull: 6.7 Feet Per Minute At 4500 Pound
- Electrical Control Type: Solenoid
- Motor Type: Permanent Magnet
- Drive Gear Type: Planetary
- Line Diameter (IN): 1/4 Inch
- Drum Material: Metal
- Estimated Install Time (Hours): 2
