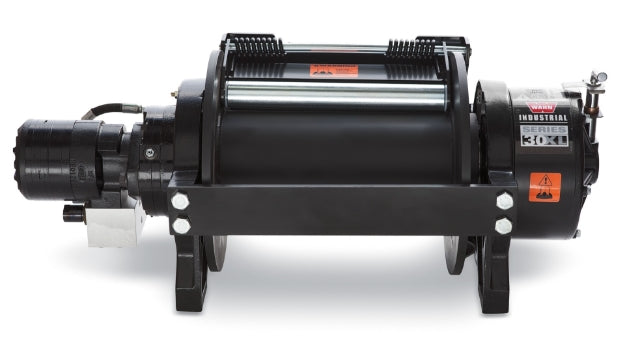

Warn 80511 Series 30XL-LP Hydraulic Winch (Long Drum, Manual Clutch)
SKU
80511
FITMENT CONFIRMED
CONFIRMED FIT FOR
NOT A MATCH
WILL NOT FIT
CONFIRM IT FITS YOUR TRUCK
Sale price
$6,451.61
Regular price
$8,602.15
SAVE $2,150.54
Unit price
30-day hassle-free returns
PAY OVER TIME WITH BREAD
0% APR available. Prequalifying will not affect your credit.
Real truck enthusiasts. Not a call center.
Free LTL Freight Shipping
Free freight shipping. Carrier schedules delivery at a time that works for you.
$6,451.61$8,602.15
Product details
Full specifications
- Brand
- Warn
- Part Number
- 80511
- Type
- Winch
- Style
- Warn Jeep, Truck & SUV Winches
WARN 80511
Features:
- 14.9 cubic-inch high-performance motor with 30,000-pound capacity, great for wreckers, trailers, or severe-duty applications
- Spring-applied disc brake designed to hold the full rated load
- Hardened aircraft-grade nickel chromalloy two-stage planetary gear train for speed and reliability
- Standard air clutch with manual clutch option
- Available in short- and long-drum versions
- Meets SAE J706 and CE specifications
- Limited lifetime warranty for mechanical components
- Limited five (5) year warranty for electrical components
Specifications:
- Type: Hydraulic
- Mount Type: Vehicle Mounted
- Recommended Use: Industrial
- Voltage: Not Applicable
- Motor Horsepower: Not Applicable
- Electrical Control Type: Not Applicable
- Drive Gear Type: Planetary
- Gear Reduction Ratio: 36:1
- Brake Type: Spring Applied Disc
- Line Diameter (IN): No Rope
- Line Length (FT): No Rope
- Line Material: No Rope
- Fairlead Type: No Fairlead
- Conforms to J706 Standards: Yes
- Mounting Hole Quantity: 8
- Mounting Pattern Length (IN): 18 Inch
- Mounting Pattern Width (IN): 7-1/2 Inch
- Color: Black
- Max Line Pull / Line Speed: 30,000 Pound / 14.9 Feet Per Minute
WARN 80511
Features:
- 14.9 cubic-inch high-performance motor with 30,000-pound capacity, great for wreckers, trailers, or severe-duty applications
- Spring-applied disc brake designed to hold the full rated load
- Hardened aircraft-grade nickel chromalloy two-stage planetary gear train for speed and reliability
- Standard air clutch with manual clutch option
- Available in short- and long-drum versions
- Meets SAE J706 and CE specifications
- Limited lifetime warranty for mechanical components
- Limited five (5) year warranty for electrical components
Specifications:
- Type: Hydraulic
- Mount Type: Vehicle Mounted
- Recommended Use: Industrial
- Voltage: Not Applicable
- Motor Horsepower: Not Applicable
- Electrical Control Type: Not Applicable
- Drive Gear Type: Planetary
- Gear Reduction Ratio: 36:1
- Brake Type: Spring Applied Disc
- Line Diameter (IN): No Rope
- Line Length (FT): No Rope
- Line Material: No Rope
- Fairlead Type: No Fairlead
- Conforms to J706 Standards: Yes
- Mounting Hole Quantity: 8
- Mounting Pattern Length (IN): 18 Inch
- Mounting Pattern Width (IN): 7-1/2 Inch
- Color: Black
- Max Line Pull / Line Speed: 30,000 Pound / 14.9 Feet Per Minute
