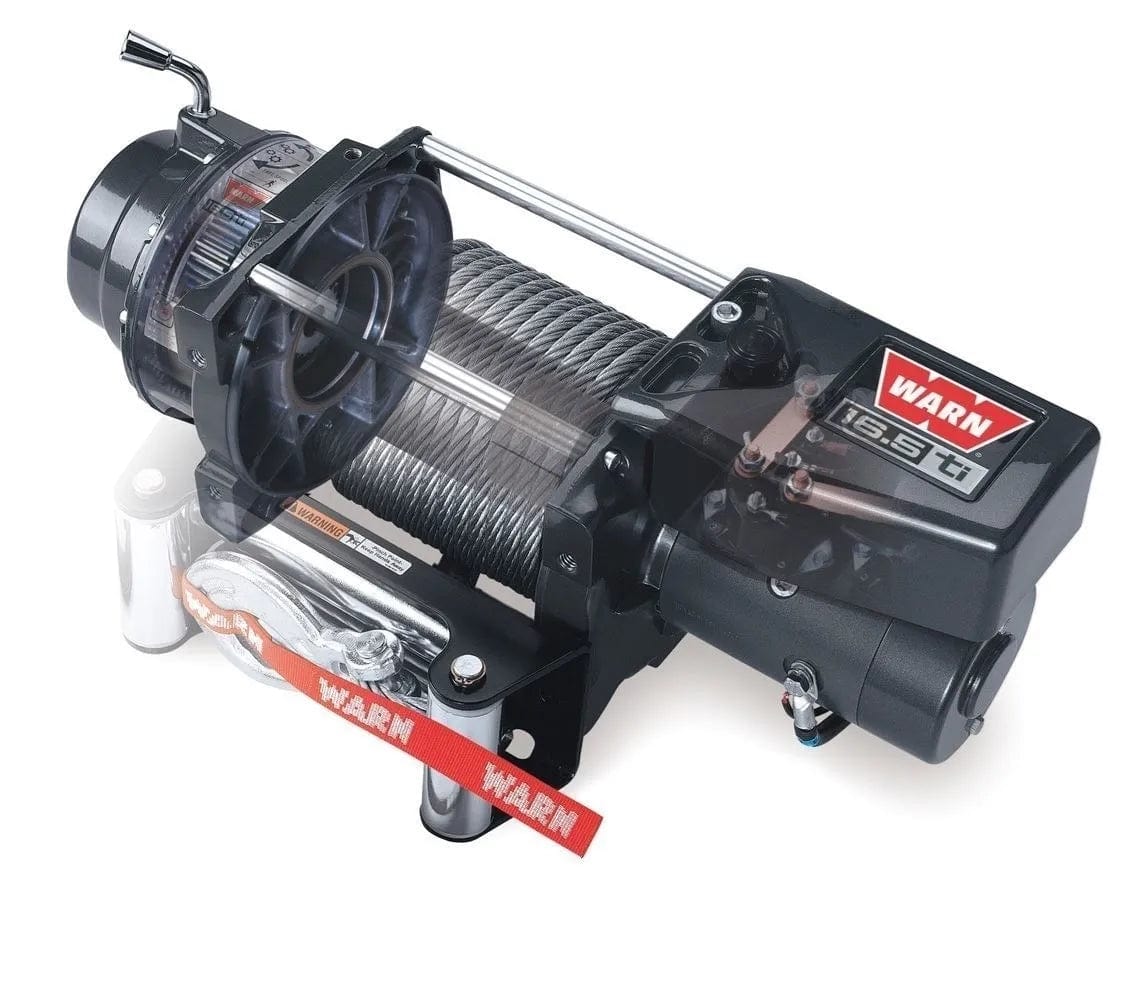

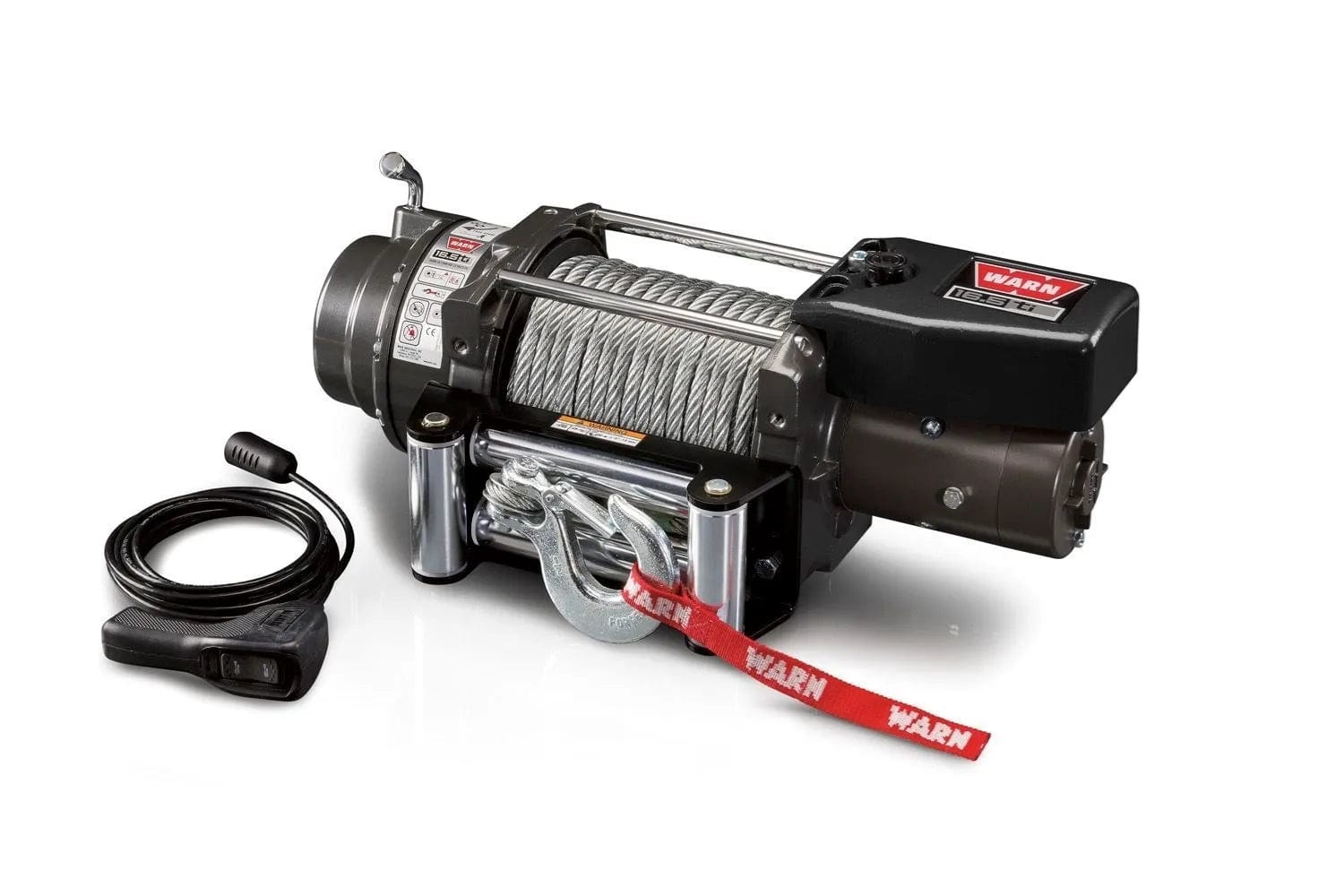

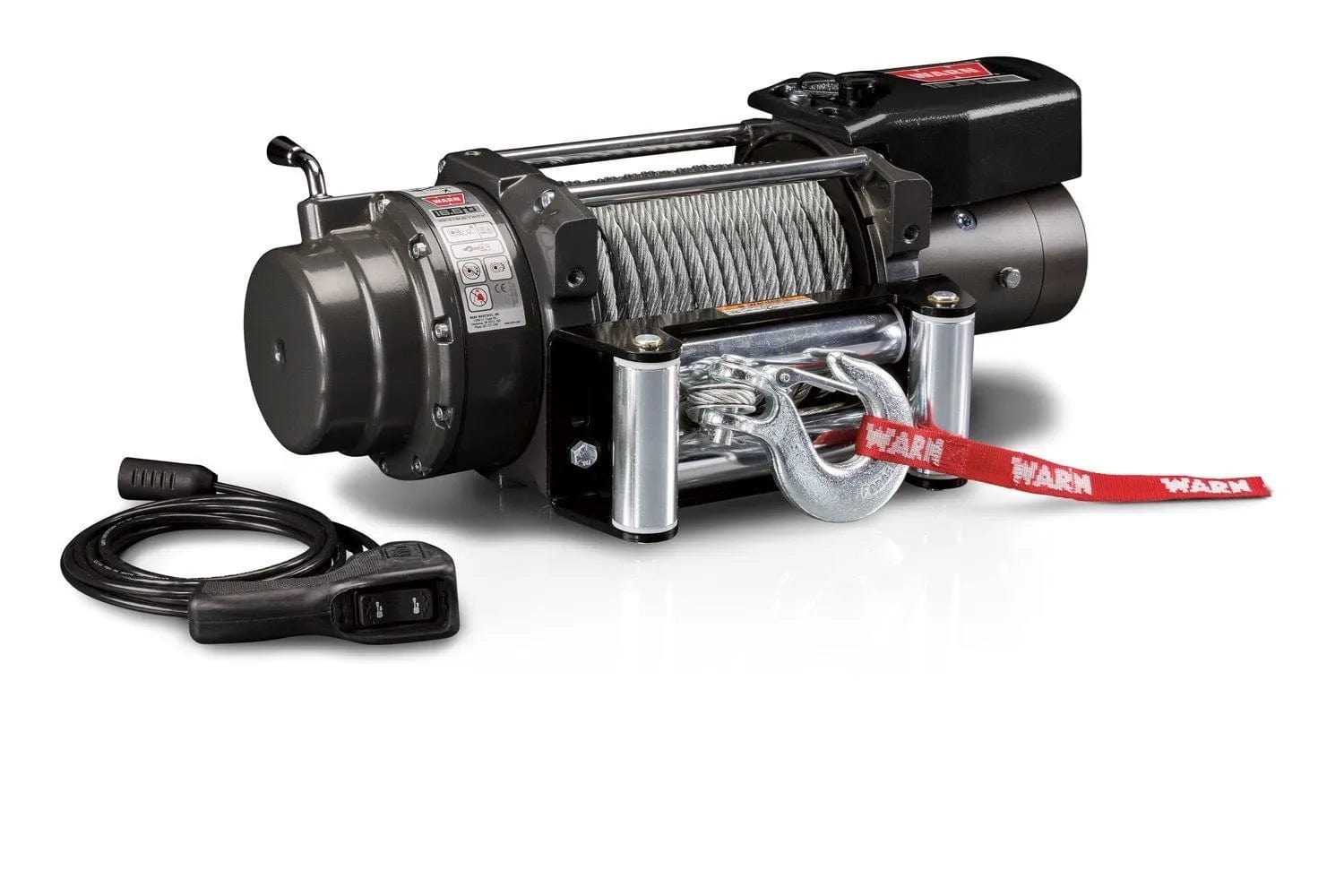

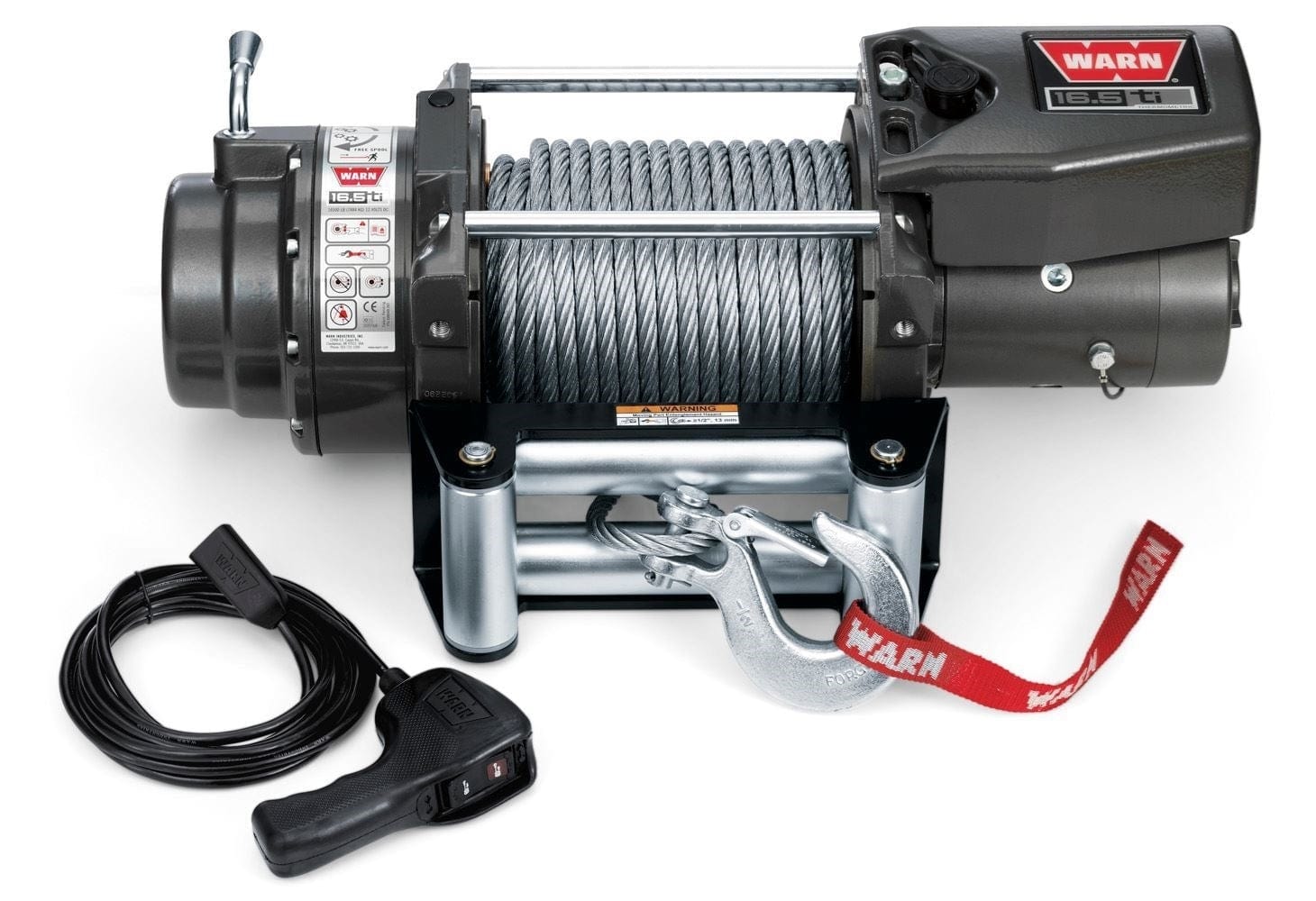

WARN 16.5ti 68801 16.5K Large Size Truck Winch

2 reviews
Sale price$2,839.99 Regular price$3,981.86

Description

Brand: Warn

Part Number: 68801

Fitment Notes: This product requires a compatible bumper or mounting plate to be properly mounted to your vehicle.

Type: Winch

Style: Warn Jeep, Truck & SUV Winches

Warn 16.5ti Winch 68801

Features:

  • Extreme-duty sealing helps protect the winch from the outside elements
  • Series-wound, high-speed motor provides fast line speed and strong pulls
  • Exclusive brake design provides superior control while winching
  • Aluminum control box cover for added protection of the electronics
  • Durable 3-stage planetary geartrain for smooth, reliable, operation
  • Remote control with 12' (3.7m) lead and thermometric LED indicator for operator feedback
  • Chip-resistant powder-coated finish with primer undercoating for superior corrosion protection
  • 90' of 7/16" (27m of 11mm) diameter wire rope
  • Limited Lifetime Warranty for Mechanical Components. Limited Seven (7) year warranty for Electrical Components.

Details:

  • Winch Rating: 16500 Pound
  • Recommended Use: Vehicle Recovery
  • Operation Type: Electric
  • Mount Type: Fixed Mount
  • Voltage: 12 Volt
  • Free Spooling: Yes
  • Line Length (FT): 90 Feet
  • Line Material: Steel

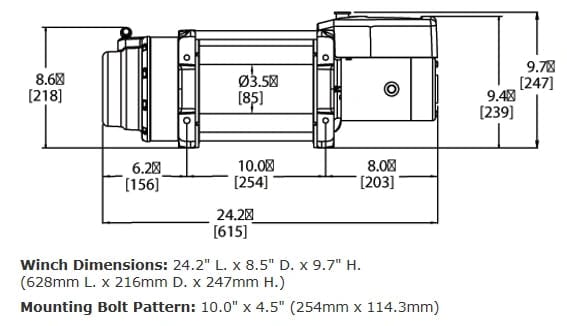

  • Mounting Pattern Size: 10 Inch Length X 4-1/2 Inch Width
  • Brake Type: Direct Drive Cone
  • Max Amp Draw: 507 Amp Draw At 16500 Pound
  • Gear Reduction Ratio: 315:1
  • Includes Mounting Hardware: No
  • Thermal Shutoff: No
  • Color: Gray
  • Motor Horsepower: 4.6 Horsepower
  • Fairlead Type: Roller
  • Remote Type: Wired

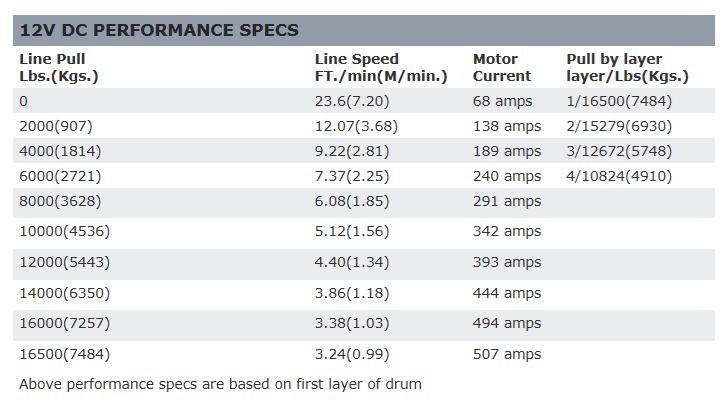

  • Line Speed At Max Pull: 3.2 Feet Per Minute At 16500 Pound
  • Electrical Control Type: Solenoid
  • Motor Type: Series Wound
  • Drive Gear Type: Planetary
  • Line Diameter (IN): 7/16 Inch
  • Mounting Hole Quantity: 4
  • Drum Material: Aluminum
  • Estimated Install Time (Hours): 2
