SPECS
Brand: Warn
Part Number: 71550
Fitment Notes: This product requires a compatible bumper or mounting plate to be properly mounted to your vehicle.
Type: Winch
Style: Warn Jeep, Truck & SUV Winches

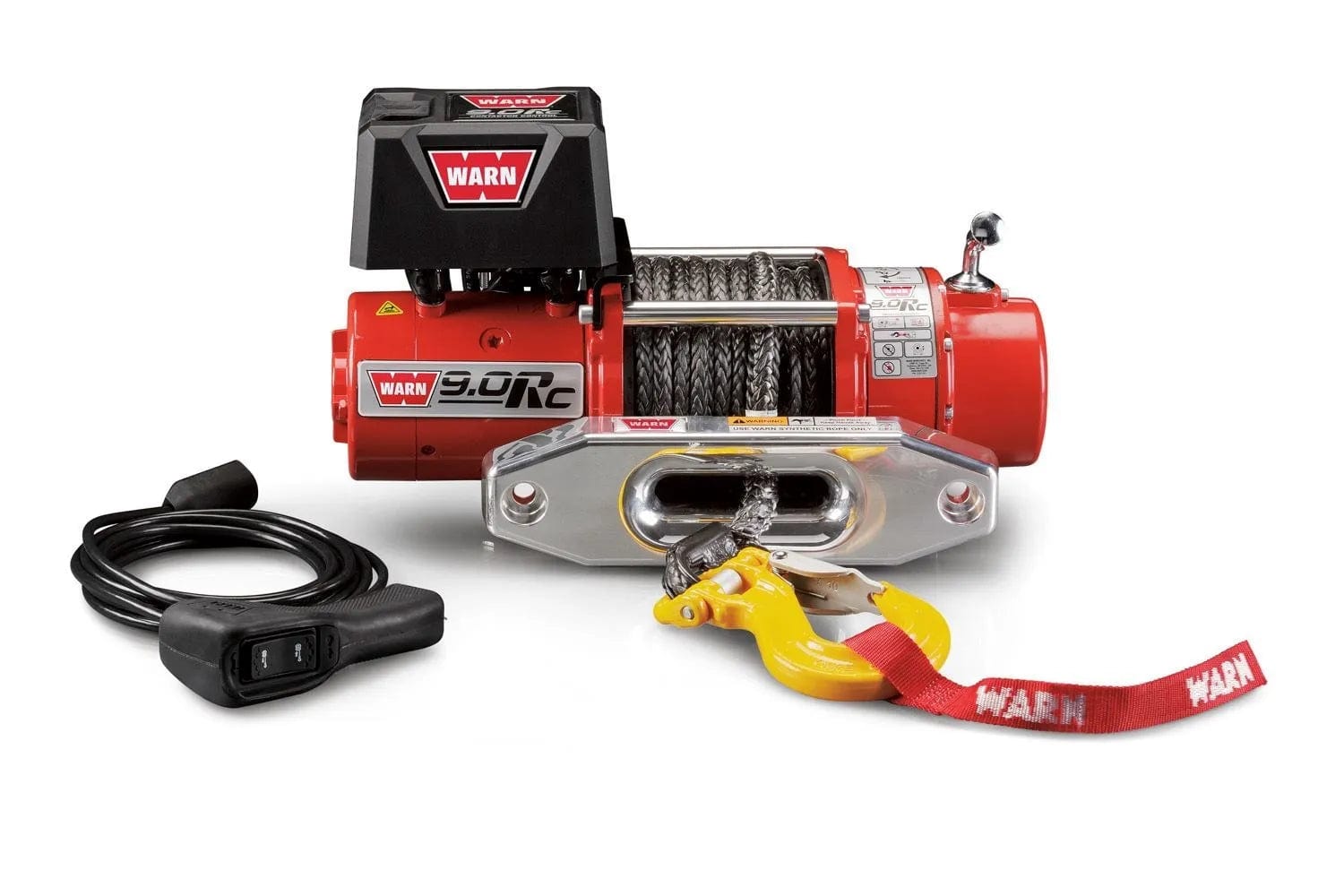

Warn 9.0Rc Winch 71550
Features:
- 4.8 hp series wound motor delivers 9,000 lbs. of pulling capacity, and fast line speed under load
- Next-generation control pack delivers long duty cycles
- New-style remote control
- 50' of 3/8" (15 m of 9.5 mm) diameter synthetic rope combined with a rugged, 360-degree swivel hook and thimble
- Ballistic nylon sliding sleeve that provides extra rope protection against abrasion and wear
- Aluminum hawse fairlead
- Exclusive multi-segment cam actuated brake for positive operator control during winching
- Gloss red paint with primer undercoat gives superior corrosion resistance
- Limited Lifetime Warranty for Mechanical Components. Limited Seven (7) year warranty for Electrical Components.
Details:
- Winch Rating: 9000 Pound
- Recommended Use: Vehicle Recovery
- Operation Type: Electric
- Mount Type: Fixed Mount
- Voltage: 12 Volt
- Free Spooling: Yes
- Line Length (FT): 50 Feet
- Line Material: Synthetic
- Remote Type: Wired
- Universality: Fully Universal

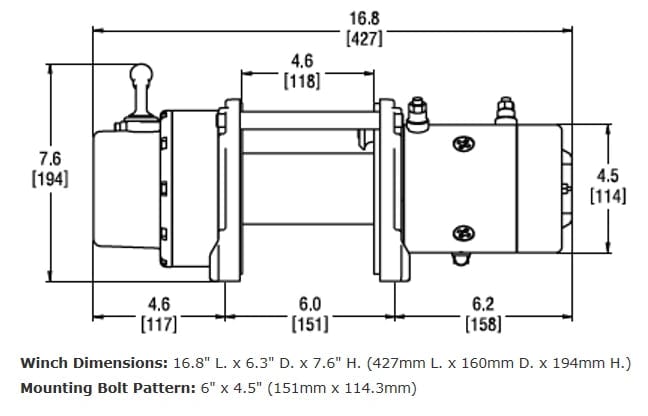

- Mounting Pattern Size: 6 Inch Length X 4-1/2 Inch Width
- Brake Type: Automatic Cone
- Max Amp Draw: 408 Amp Draw At 9000 Pound
- Gear Reduction Ratio: 261:1
- Includes Mounting Hardware: No
- Thermal Shutoff: No
- Color: Red
- Motor Horsepower: 4.8 Horsepower
- Fairlead Type: Hawse

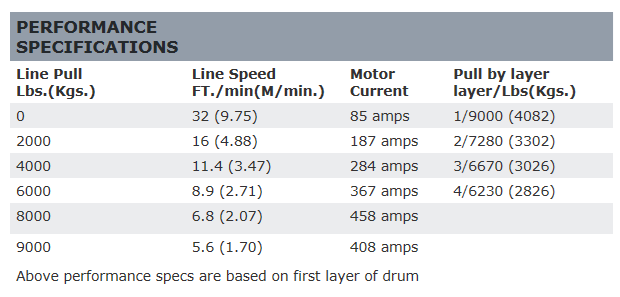

- Line Speed At Max Pull: 5.6 Feet Per Minute At 9000 Pound
- Electrical Control Type: Contactors
- Motor Type: Series Wound
- Drive Gear Type: Planetary
- Line Diameter (IN): 3/8 Inch
- Mounting Hole Quantity: 4
- Drum Material: Aluminum
- Estimated Install Time (Hours): 2
