Description
Brand: Warn
Part Number: 87310
Fitment Notes: This product requires a compatible bumper or mounting plate to be properly mounted to your vehicle.
Type: Winch
Style: Warn Jeep, Truck & SUV Winches

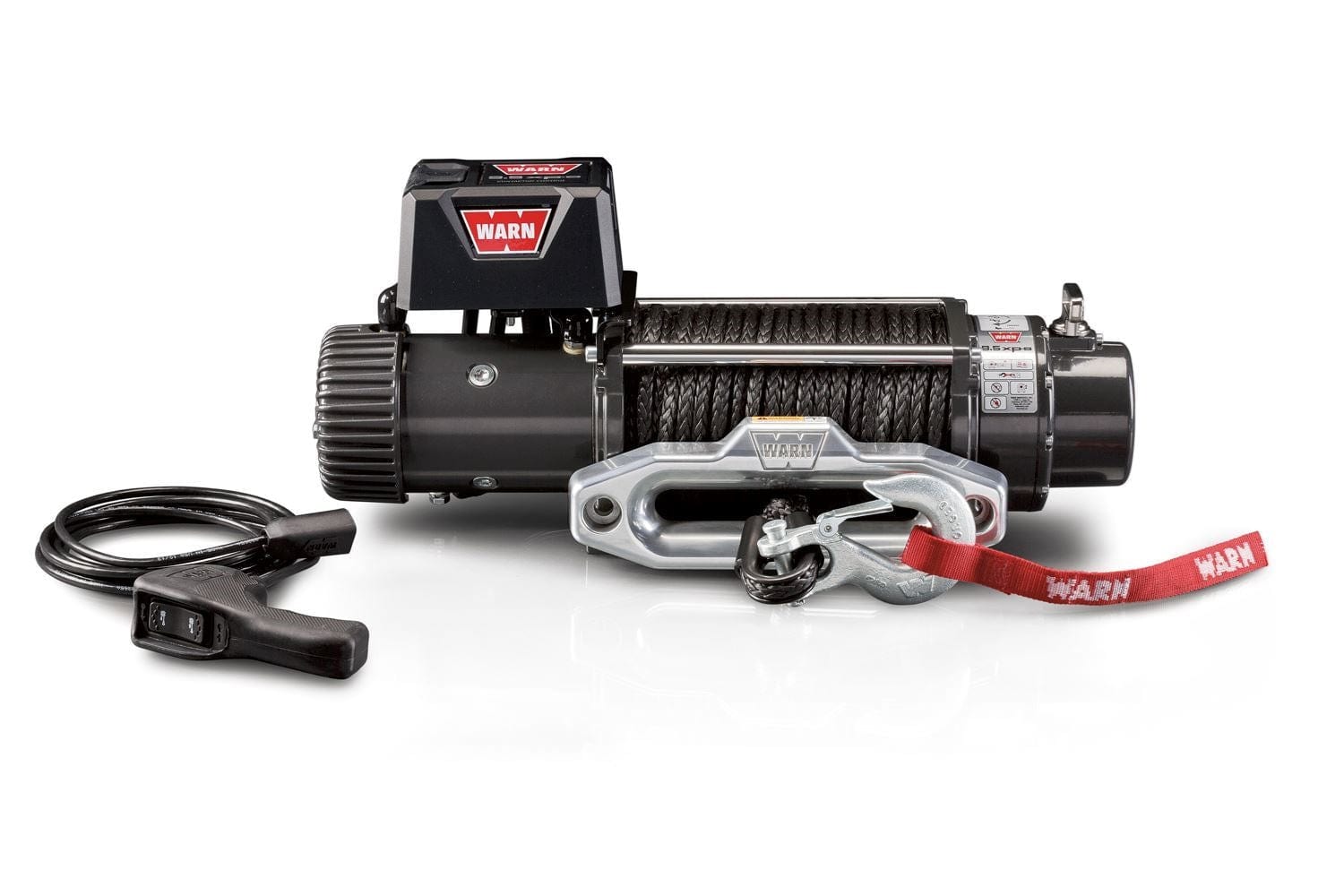

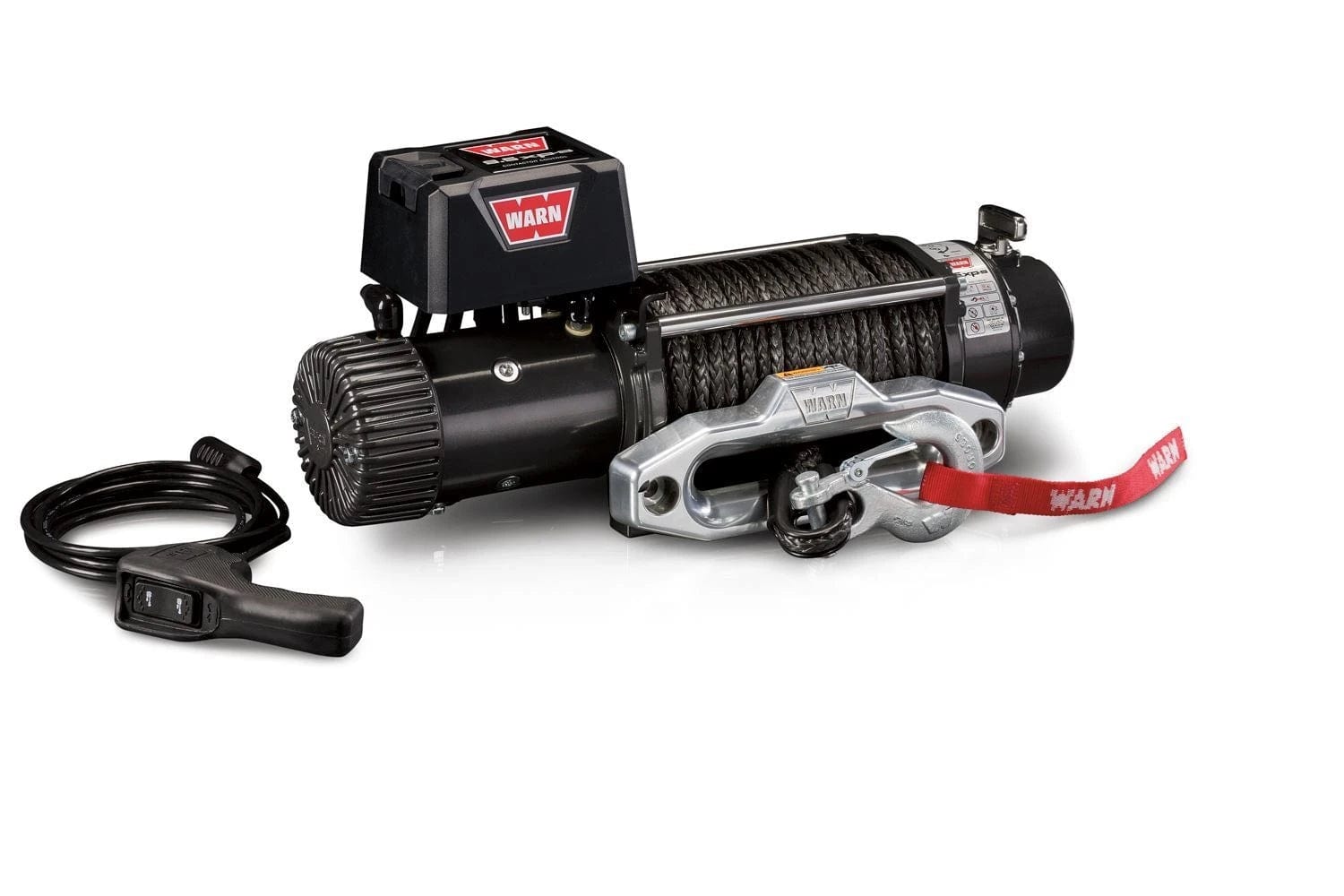

Warn 9.5XP-S Winch 87310
Features:
- Now available with WARN Spydura™ synthetic rope with matte aluminum hawse fairlead
- High-output parallel series wound winch motor is the strongest and most durable in the industry
- Extreme-duty winch sealing. Enables superior water resistance
- Exclusive brake design. Provides superior operator control when winching
- Extended-duty control pack delivers long duty cycle to help you tackle the most demanding pulls
- 3-Stage planetary geartrain. Proven to be the most reliable efficient and durable design
- Remote-mount, next-generation control box allows for various mounting options
- Remote control with 12' (3.7m) lead
- High gloss, chip-resistant powder coat finish. Provides superior corrosion resistance
- 100' of WARN Spydura synthetic rope
- Limited lifetime warranty (geartrain), 7 year warranty (electrical)
Details:
- Winch Rating: 9500 Pound
- Recommended Use: Vehicle Recovery
- Operation Type: Electric
- Mount Type: Fixed Mount
- Voltage: 12 Volt
- Free Spooling: Yes
- Line Length (FT): 100 Feet
- Line Material: Synthetic

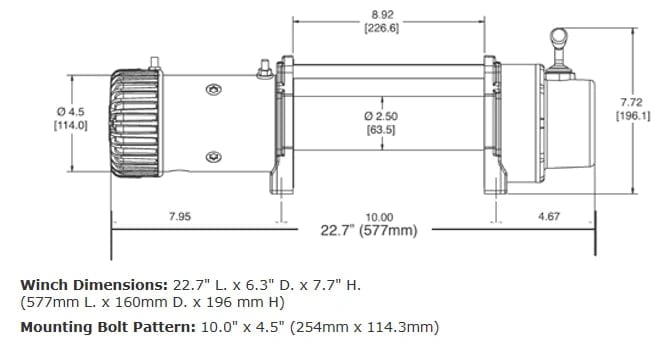

- Mounting Pattern Size: 10 Inch Length X 4-1/2 Inch Width
- Brake Type: Automatic Cone
- Max Amp Draw: 482 Amp Draw At 9500 Pound
- Gear Reduction Ratio: 156:1
- Includes Mounting Hardware: No
- Thermal Shutoff: No
- Color: Gray
- Motor Horsepower: 6 Horsepower
- Fairlead Type: Hawse
- Remote Type: Wired

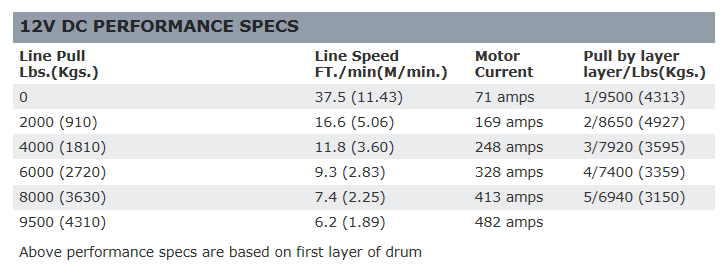

- Line Speed At Max Pull: 6.2 Feet Per Minute At 9500 Pound
- Electrical Control Type: Contactors
- Motor Type: Series Wound
- Drive Gear Type: Planetary
- Line Diameter (IN): 3/8 Inch
- Mounting Hole Quantity: 4
- Drum Material: Aluminum
- Estimated Install Time (Hours): 2
