Description
Brand: Warn
Part Number: 87800
Fitment Notes: This product requires a compatible bumper or mounting plate to be properly mounted to your vehicle.
Type: Winch
Style: Warn Jeep, Truck & SUV Winches

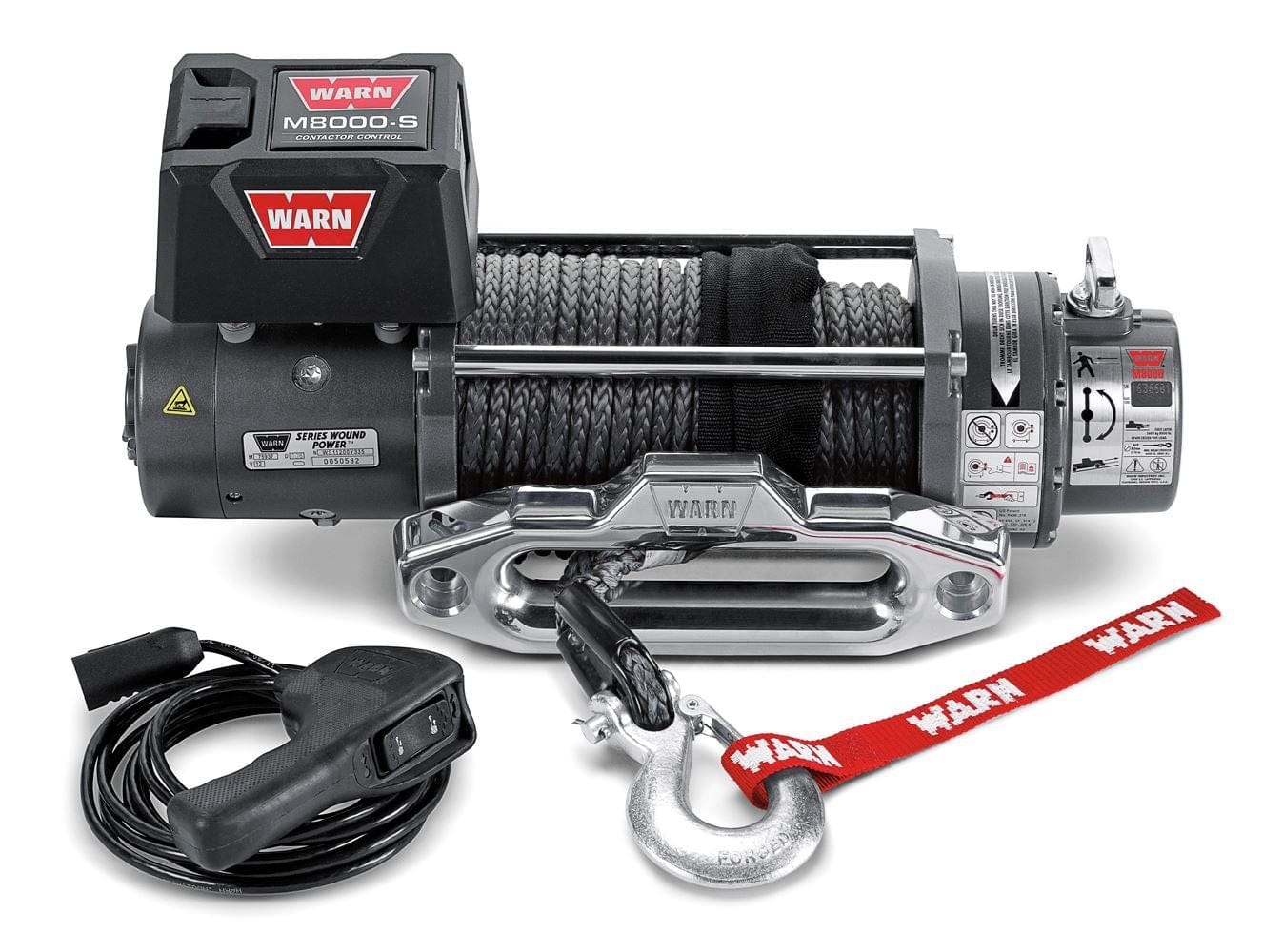

Warn M8000-S Winch 87800
Features:
- Available with WARN Spydura™ synthetic rope with matte aluminum hawse fairlead
- Premium Series winch that delivers classic design, proven performance, and legendary WARN reliability
- Contactor control box and hand-held, corded remote control.
- Low-profile design and separate control box allows for a wide range of mounting options
- Exclusive brake design provides superior control while winching
- Durable 3-stage planetary geartrain for smooth, reliable, operation
- Series-wound, high-speed motor provides fast line speed and strong pulls
- Chip-resistant powder-coated finish
- 100' of WARN Spydura synthetic rope
- Limited lifetime warranty (Geartrain), 7 year warranty (electrical)
Details:
- Winch Rating: 8000 Pound
- Recommended Use: Vehicle Recovery
- Operation Type: Electric
- Mount Type: Fixed Mount
- Voltage: 12 Volt
- Free Spooling: Yes
- Line Length (FT): 100 Feet
- Line Material: Synthetic

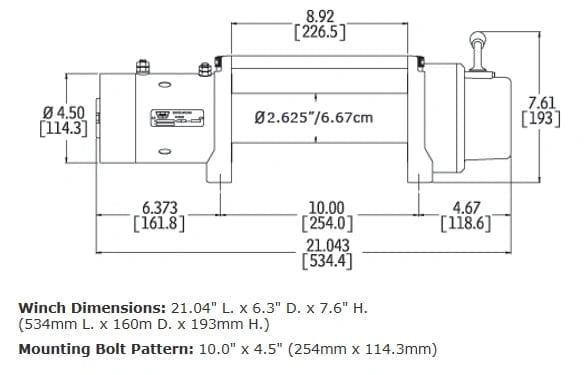

- Mounting Pattern Size: 10 Inch Length X 4-1/2 Inch Width
- Brake Type: Automatic Cone
- Max Amp Draw: 435 Amp Draw At 8000 Pound
- Gear Reduction Ratio: 261:1
- Includes Mounting Hardware: No
- Thermal Shutoff: No
- Color: Gray
- Motor Horsepower: 4.8 Horsepower
- Fairlead Type: Hawse
- Remote Type: Wired

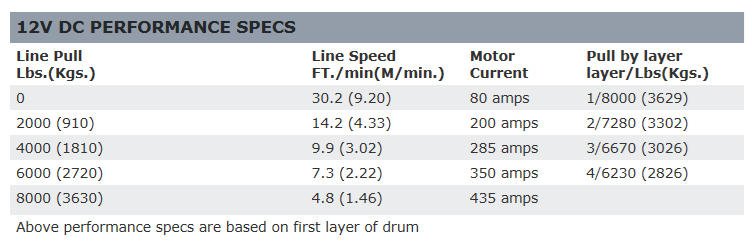

- Line Speed At Max Pull: 4.8 Feet Per Minute At 8000 Pound
- Electrical Control Type: Contactors
- Motor Type: Series Wound
- Drive Gear Type: Planetary
- Line Diameter (IN): 3/8 Inch
- Mounting Hole Quantity: 4
- Estimated Install Time (Hours): 2
