Description
SPECS
Brand: Warn
Part Number: 89120
Fitment Notes: This product requires a compatible bumper or mounting plate to be properly mounted to your vehicle.
Type: Winch
Style: Warn Jeep, Truck & SUV Winches

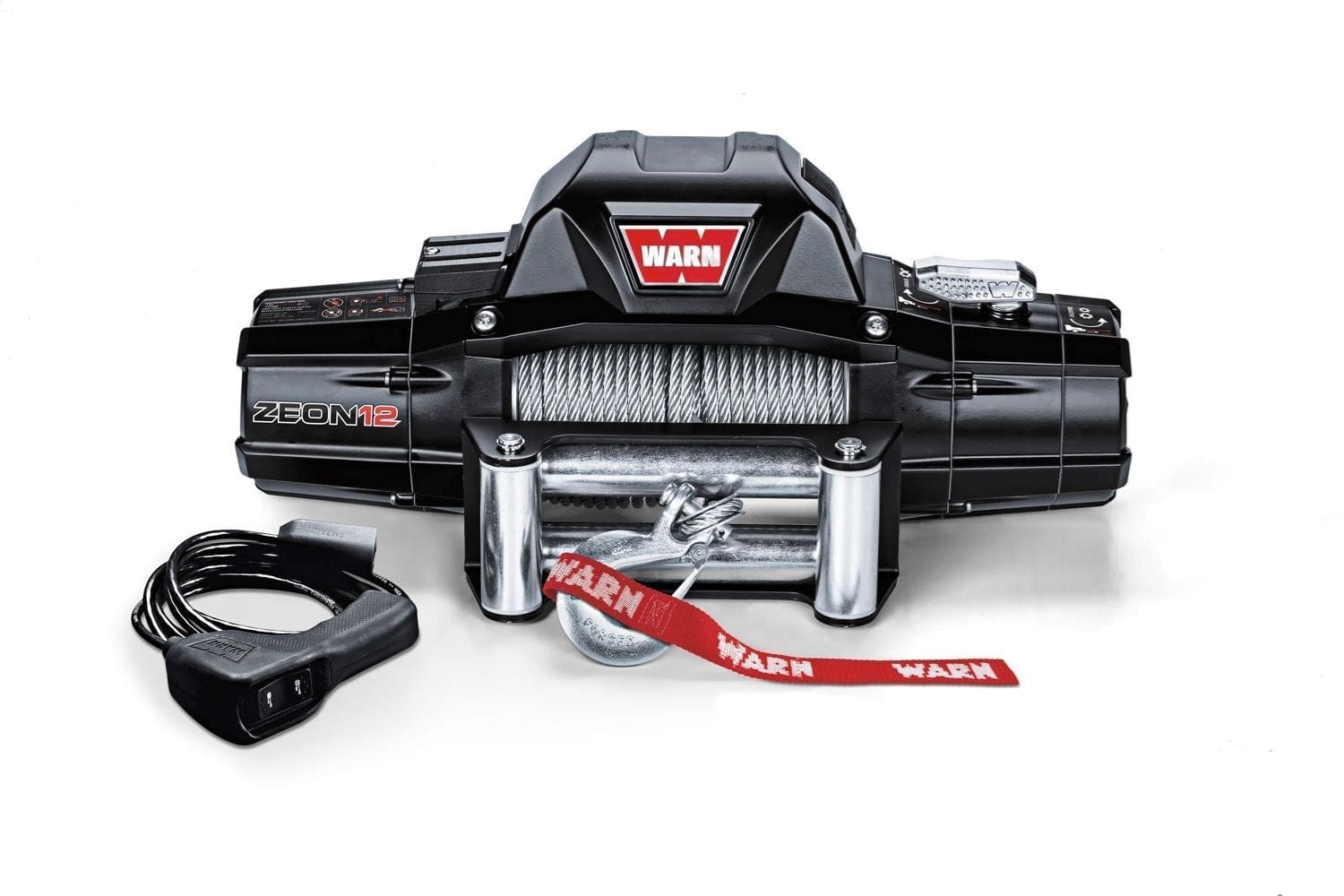

Warn ZEON 12 Winch 89120
Features:
- 12,000 lb. (5443 kg) single-line pulling capacity.
- Includes 80' of durable 3/8" galvanized steel wire rope.
- Convertible control pack can be attached to the winch or remotely mounted, allowing for various winch mounting options and looks (Relocation kit required and sold separately*).
- Gear train and motor deliver reliable pulling power that is fast, and quieter than ever.
- Satin-black powder-coated finish with stainless steel fasteners and clutch lever looks great and inhibits corrosion. Improved winch sealing to keep the elements out.
- Large diameter winch drum reduces rope wear, is light weight, and has an integrated rope anchor for easy rope installation.
- Limited Lifetime Warranty for Mechanical Components. Limited Seven (7) year warranty for Electrical Components.
Details:
- Winch Rating: 12000 Pound
- Recommended Use: Vehicle Recovery
- Operation Type: Electric
- Mount Type: Fixed Mount
- Voltage: 12 Volt
- Free Spooling: Yes
- Line Length (FT): 80 Feet
- Line Material: Steel

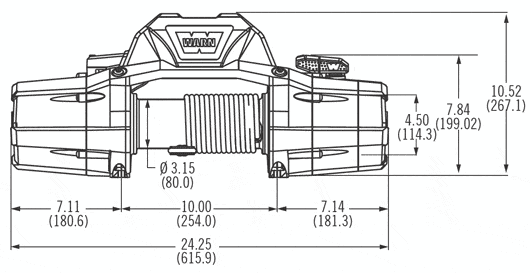

- Mounting Pattern Size: 10 Inch Length X 4-1/2 Inch Width
- Brake Type: Automatic Cone
- Max Amp Draw: 469 Amp Draw At 12000 Pound
- Gear Reduction Ratio: 261:1
- Includes Mounting Hardware: No
- Thermal Shutoff: No
- Color: Black
- Fairlead Type: Roller
- Remote Type: Wired

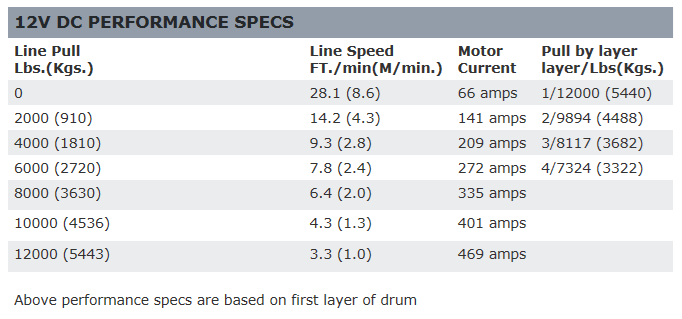

- Line Speed At Max Pull: 3.3 Feet Per Minute At 12000 Pound
- Electrical Control Type: Contactors
- Motor Type: Series Wound
- Drive Gear Type: Planetary
- Line Diameter (IN): 3/8 Inch
- Mounting Hole Quantity: 4
- Estimated Install Time (Hours): 2
