Description
Brand: Warn
Part Number: 92820

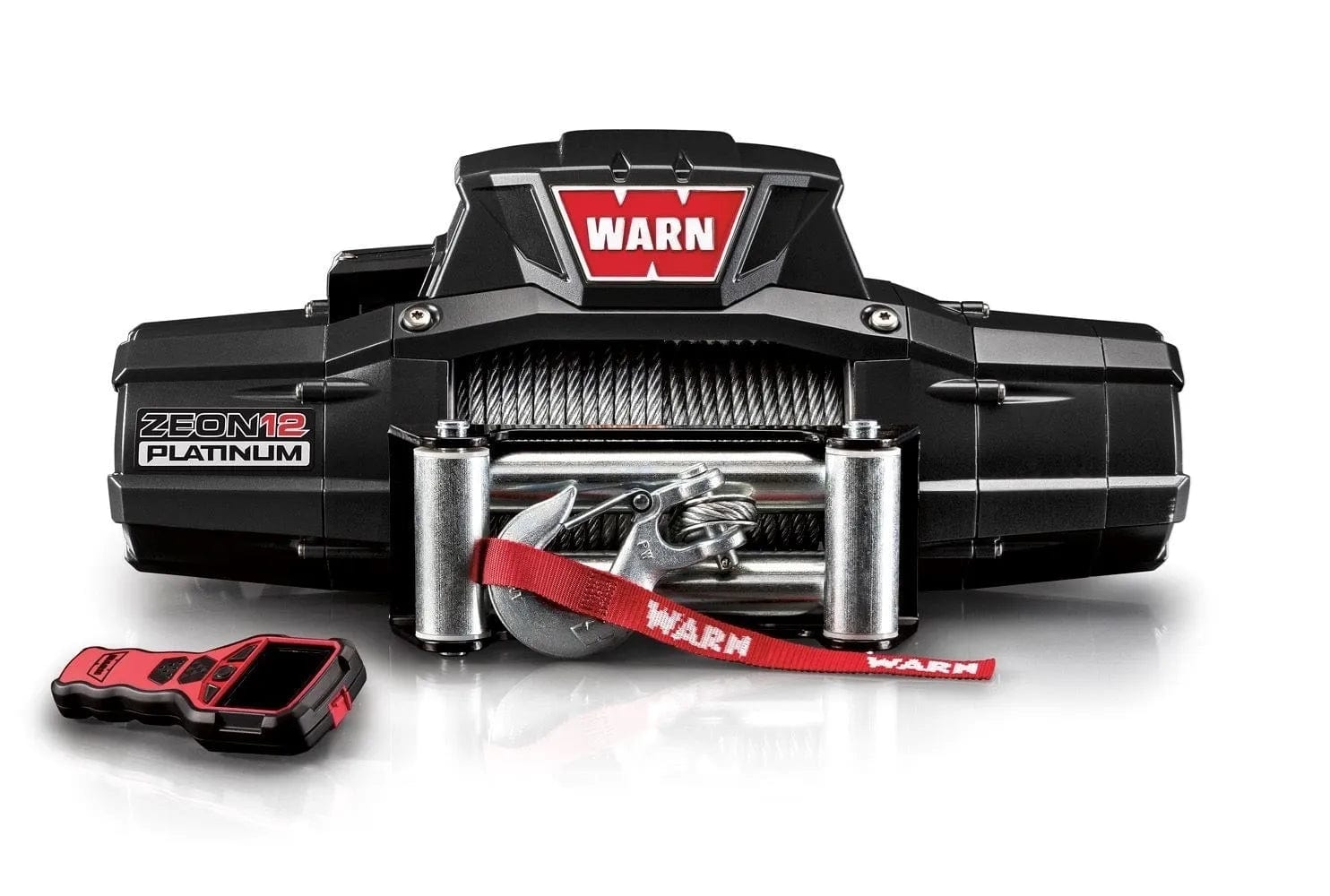

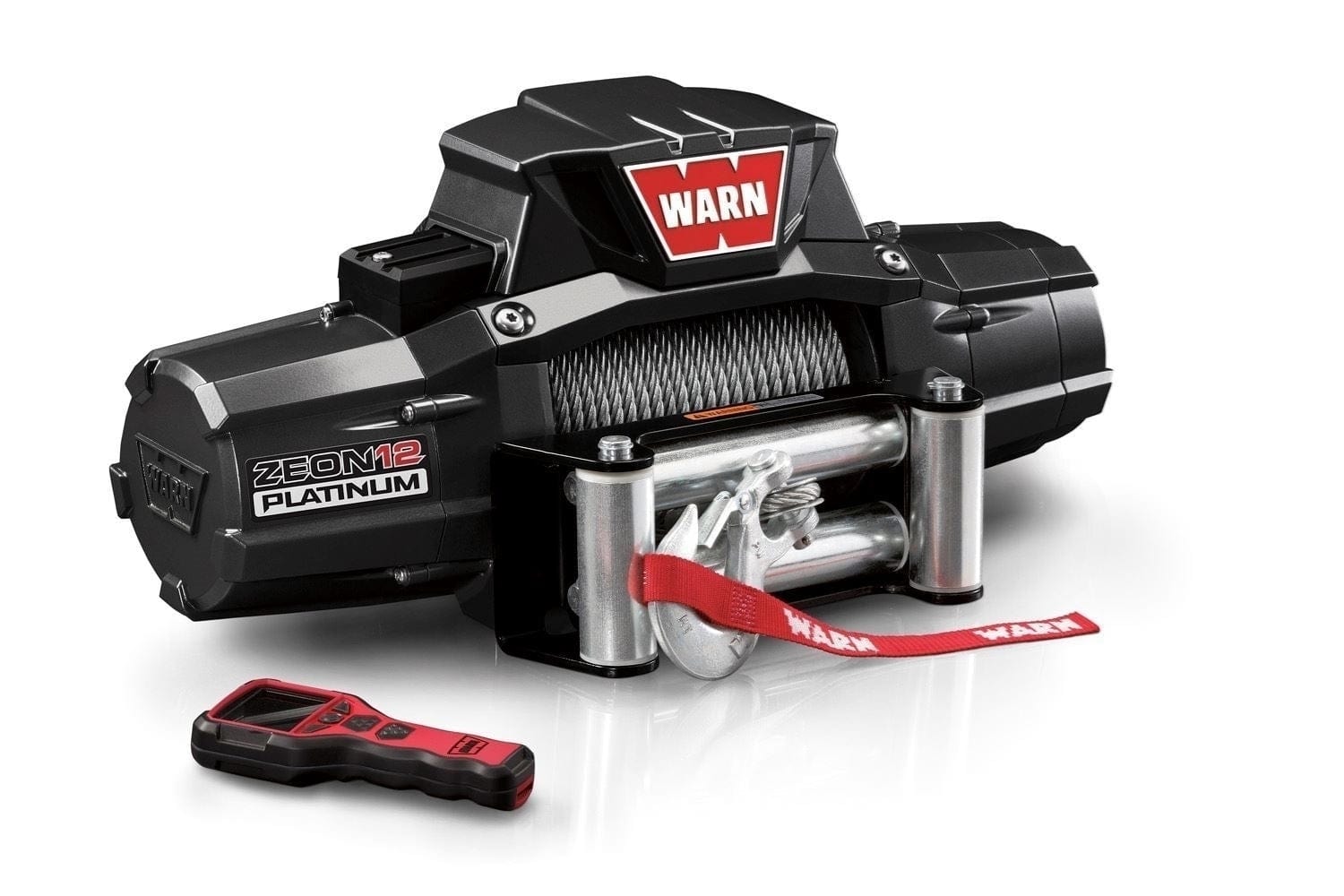

Fitment Notes: The ZEON 12 Platinum 12-volt electric Winch is vehicle mounted and has a pull capacity of 12,000 pounds. It comes with 80 feet of steel rope. This Winch will require winch mount for proper installation.
Type: Winch
Style: Warn Jeep, Truck & SUV Winches
Features:
- All-new high-speed motor, stronger gears, and heat-treated ring gear deliver 20% faster line speed, best-in-class efficiency, and our highest durability rating.
- The Advanced Wireless Remote gives you total control in the palm of your hand, allowing you to control the winch and up to two accessories. This sophisticated, advanced remote provides operator feedback on vehicle battery charge and winch motor temperature, controls operation of the winch clutch, and more. Includes USB charging cable and car charger adapter.
- Remote Controlled Clutch is engaged and disengaged with the Advanced Wireless Remote. The remote controls winch-in, winchout, and freespool operations. No more engaging a manual clutch, with frozen fingers while standing in the mud.
- Durable aluminum structure with flat black powder-coated finish and stainless steel fasteners delivers durability and maximum corrosion resistance-exceeding 400 hours of salt-spray testing.
- Large diameter alloy winch drum with steel sleeve is strong, light weight, reduces rope wear, and has an integrated rope anchor for easy rope installation.
- Extreme waterproofing meets rigorous IP68 standards - the highest rating in the WARN Truck/SUV winch lineup.
- Convertible control pack can be attached to the winch or remotely mounted, allowing for various winch mounting options and looks (Relocation kit required and sold separately). The new-style control pack with contactor and advanced controls gives you extreme reliability and weather resistance.
- Limited Lifetime Warranty for Mechanical Components. Limited Seven (7) year warranty for Electrical Components.
Details:
- Winch Rating: 12000 Pound
- Recommended Use: Vehicle Recovery
- Operation Type: Electric
- Mount Type: Fixed Mount
- Voltage: 12 Volt
- Free Spooling: Yes
- Line Length (FT): 80 Feet
- Line Material: Steel
- Remote Type: Wireless
- Universality: Fully Universal

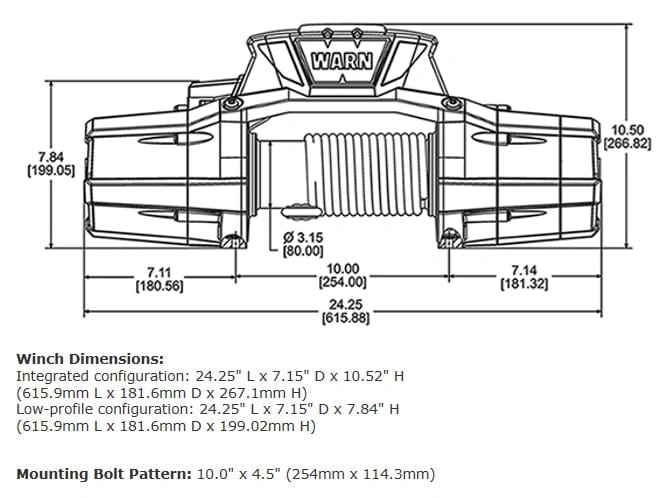

- Mounting Pattern Size: 12 Inch Length X 4-1/2 Inch Width
- Brake Type: Automatic Cone
- Max Amp Draw: 446 Amp Draw At 12000 Pound
- Gear Reduction Ratio: 261:1
- Includes Mounting Hardware: Yes
- Thermal Shutoff: No
- Color: Black
- Fairlead Type: Roller

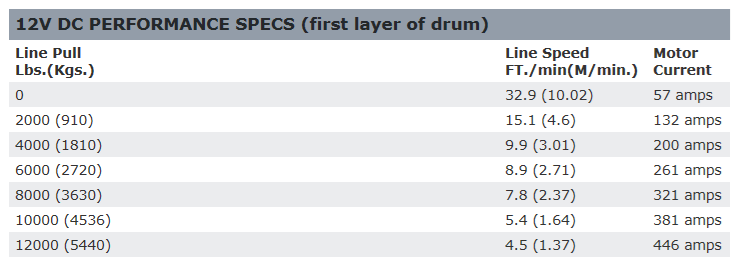

- Line Speed At Max Pull: 4.5 Feet Per Minute At 12000 Pound
- Electrical Control Type: Contactors
- Motor Type: Series Wound
- Drive Gear Type: Planetary
- Line Diameter (IN): 3/8 Inch
- Mounting Hole Quantity: 4
- Drum Material: Aluminum
- Estimated Install Time (Hours): 2
