Description
Brand: Warn
Part Number: 101150
Fitment Notes: This product requires a compatible bumper or mounting plate to be properly mounted to your vehicle.
Type: Winch

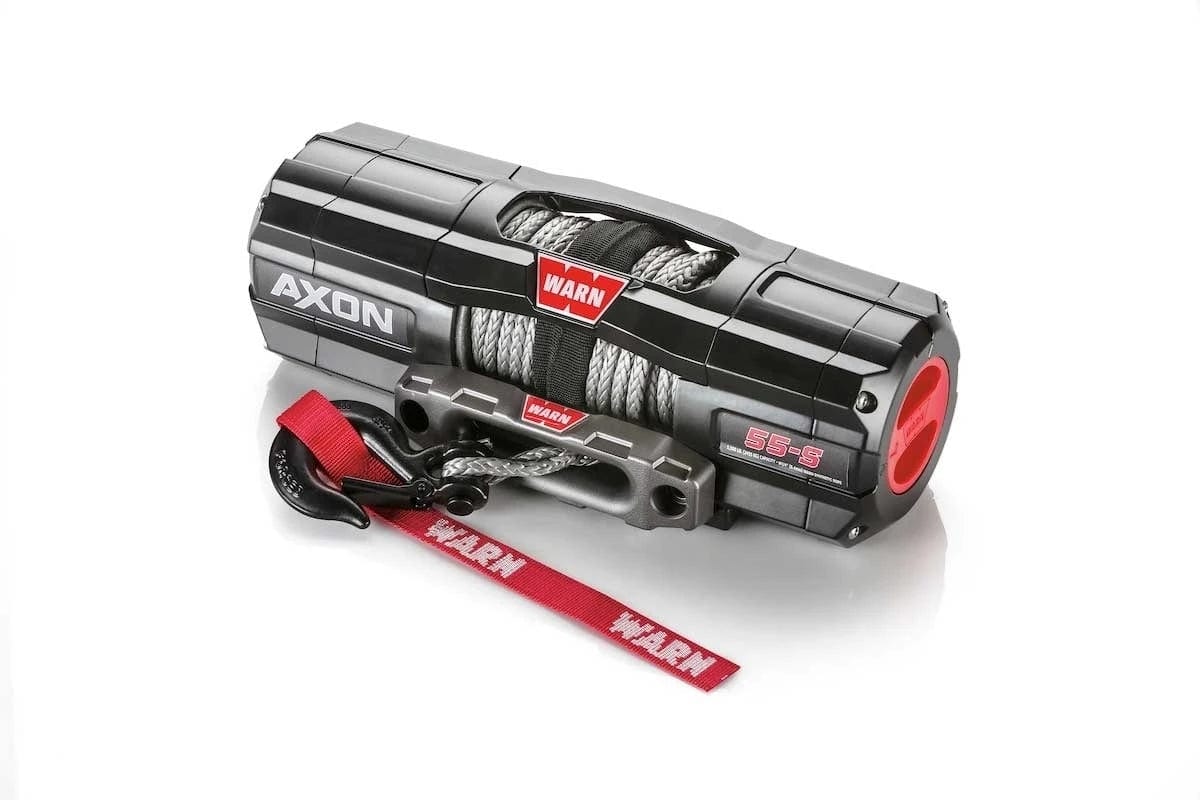

WARN AXON 101150
Features:
- AXON 55-S comes with 50’ of lightweight, easy-to-handle ¼” Spydura synthetic rope, an Epic
hawse fairlead, and a black hook - Massive 5,500 lb. capacity for the biggest UTVs and biggest pulls
- Revolutionary Motactor™ combines motor and contactor for easy installation, best performance
- IP68 waterproofing keeps water and the elements out
- Satin black powder-coated finish and stainless steel fasteners for corrosion resistance
- Durable all-metal construction and one-piece tie plate (vs. tie bars) for increased structural rigidity
- New clutch design based on legendary WARN 4WD hub lock know-how
- Load-holding brake for great control
- Smooth and reliable all-metal three-stage planetary gear train

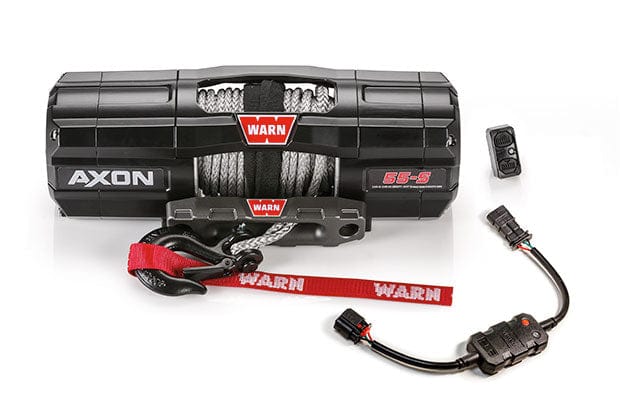

- Rockerbar digital control switch, and HUB Wireless Receiver
- Limited lifetime warranty (mechanical), 3 year warranty (electrical)
Details:
- Winch Rating: 5500 Pound
- Recommended Use: ATV/ UTV
- Operation Type: Electric
- Mount Type: Fixed Mount
- Voltage: 12 Volt
- Free Spooling: No
- Line Length (FT): 50 Feet
- Line Material: Synthetic
- Remote Type: Wireless
- Universality: Fully Universal
- Brake Type: Automatic Cone

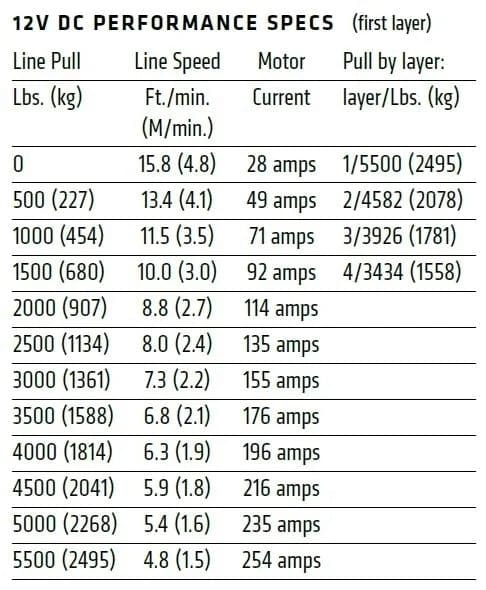

- Max Amp Draw: 254 Amp Draw At 5500 Pound
- Includes Mounting Hardware: No
- Thermal Shutoff: No
- Color: Black
- Fairlead Type: Hawse
- Line Speed At Max Pull: 4.8 Feet Per Minute At 12000 Pound
- Electrical Control Type: Solenoid
- Motor Type: Permanent Magnet
- Drive Gear Type: Planetary
- Line Diameter (IN): 1/4 Inch
- Drum Material: Metal
- Estimated Install Time (Hours): 2
